Looks like single glazing, outperforms triple-glazing
Nothing Performs Better. Achieve peak performance with LandVac Titanium Vacuum glazing – the industry leader in energy efficiency, reliability, and soundproofing.
Incredible Performance: U-Value of 0.4
With 6x the thermal performance of standard Double Glazing, and 14x that of single glazing, Ti-VIG delivers where no others can.

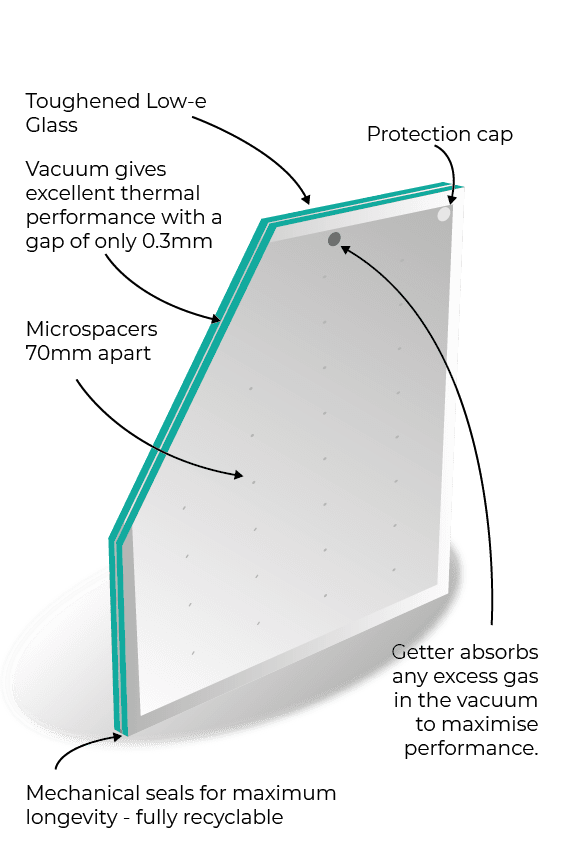

Titanium Edge Seal
Utilizing the high specific strength, low thermal conductivity, and high gas absorption characteristics of titanium alloy to make a new generation of super vacuum insulated glass with higher strength, lower heat transfer, longer lifespan, superior appearance, and outstanding performance.
Toughened for Safety
Unlike competitors, all our Ti-VIG units are toughened, Grade-A safety glass. So you can install them anywhere.
No Plugs!
Other toughened Vacuum units have unsightly plugs within the sightline. Ti-VIG has no plugs, and a getter hidden within the rebate area.
Exceptionally Thin
Ultra-thin 8.3mm units makes for an easy install in all window types and with no double reflections.
Long Lasting
A 15 year warranty and 25+ year service life backs up the leading quality and manufacturing processes.
Looks better
With 8x fewer microspacers than the leading competitor, it’s performance you can’t even see.
Comparison of glazing options
Single Glazing
Double Glazing
Triple Glazing
Titanium Vacuum Glazing
Total Thickness
4-6mm
14-30mm
28-40+mm
8.3mm
U-Value
5.9
1.4-2.9
0.7-1.65
0.4
Sound Reduction (RW)
25-30dB
30-36dB
42dB
36-39dB
Estimated Lifespan
50+ years
15 years
15 years
50+ years
Condensation Free. Ultra-low dew point means your windows remain condensation free even when the difference between the two sides exceeds 70deg.
Data Tables
Basic Low E Coating (Single Silver S1.10)
U-Value (W/m²K)
Visible Light Transmittance
SHGC
Weighted Sound Reduction (Rw)
4TL+0.3V+4T
0.4
80%
0.58
36dB
5TL+0.3V+5T
0.4
79%
0.58
37dB
6TL+0.3V+6T
0.4
78%
0.58
39dB
Premium Low E Coating (D80)
U-Value (W/m²K)
Visible Light Transmittance
SHGC
Weighted Sound Reduction (Rw)
4TL+0.3V+4T
0.4
70%
0.40
36dB
5TL+0.3V+5T
0.4
69%
0.39
37dB
6TL+0.3V+6T
0.4
68%
0.39
39dB
Solar Control Coating
U-Value (W/m²K)
Visible Light Transmittance
SHGC
Weighted Sound Reduction (Rw)
4TL+0.3V+4T
0.4
53%
0.33
36dB
Laminate
U-Value (W/m²K)
Visible Light Transmittance
SHGC
Weighted Sound Reduction (Rw)
4TL+0.3V+4TL(S1.10)+0.76P+4T
0.4
68%
0.55
40dB
4TL+0.3V+4TL(D80)+0.76P+4T
0.4
58%
0.38
40dB
4TL+0.3V+4TL(Solar Control)+0.76P+4T
0.4
43%
0.32
40dB
Shapes
LandVac Titanium VIG can be produced in a variety of shapes. Please see some examples below.
Width to Height max ratio 1:6 for 8.3mm. Larger will be 10.3mm CAD drawings must be supplied for all shaped orders. General Notes: Maximum Unit Size 4200mm x 2400mm Minimum Unit Size 190mm x 230mm. Minimum Charged Size 0.3sqm All LandVac Glass is toughened and has been certified to BS12150-1. U-value certified using hot box testing at IFT Rosenheim on 9.3 unit
